Activated Carbon Adsorption

Activated carbon is a porous material that removes organic compounds from liquids and gases in a process known as “Adsorption.”

PPC-CAP® is a Granular Activated Carbon (GAC) Adsorption Solution

Industrial Solutions: Granular activated carbon adsorption is an effective solution for removing Volatile Organic Compounds (VOCs) and trace contaminants from vapor phase applications. Harnessing its versatility, PCC offers Carbon Adsorption Process (PCC-CAP®) systems to treat contaminated industrial vapor streams.

How does Activated
Carbon Work?

Activated carbon utilizes its extremely high surface area to remove contaminants in the process of physical adsorption. At the submicroscopic level, the surface of the carbon pores exerts attractive forces. For certain VOCs, the attractive force of the carbon surface is stronger than the attractive forces keeping them dissolved in the liquid solution or vapor stream. For these compounds, the VOC molecule adheres or sticks or “adsorbs” to the surface of the carbon, thereby removing them from the treated effluent stream. Compounds that are ideal for activated carbon adsorption tend to be organic and non-polar and have high molecular weights and boiling points.

PCC Carbon Adsorption

Examples of Suitable Compounds for Carbon Adsorption


  • Chlorinated Hydrocarbons & Aromatics
  • Benzene, Toluene, Xylene, Nitrobenzene
  • Fuels, Diesel, Kerosene, Gasoline Vapors
  • Solvents, TCE, Methyl tert-Butyl Ether (MTBE)
  • Pesticides, Herbicides, DDT, Alrin, Chlordane

Back-up Devices

PCC Activated Carbon Adsorption

PCC-CAP® Adsorbers are also specifically designed to serve as backup devices for Recuperative Thermal Oxidizers (T.O.s), Regenerative Thermal Oxidizers (RTOs), and Catalytic Oxidizers. When your oxidizer requires scheduled maintenance or shutdown, switch over to the PCC-CAP® Adsorber to maximize your production uptime and ensure seamless operation.

Vapor Phase Applications across Industries

Activated Carbon Adsorbers can be used for a wide variety of vapor phase applications in vapor emission control, industrial odor control, and other markets.

Carbon Adsorbers are designed for use with both continuous and intermittent industrial waste streams, with high flow and low VOC concentrations. These include process vents, tank filling, and tank vents.

PCC-CAP® Adsorbers can receive flows from 20 to >20,000 cfm. Flows > 20,000 cfm are treated by using adsorbers in parallel.

Ideal Applications

VOC Abatement

Process Emissions

Odor Control

Thermal Oxidizer Back-ups

Industrial Process Adsorbers

Carbon Adsorbers for Industrial Process

Rigorous environmental emission regulations dictate that industrial facilities limit the release of volatile organic compounds (or VOCs) with vapor emission control systems. Vapor phase activated carbon adsorbers are ideal for eliminating or minimizing the emission of VOCs from a wide range of industrial processes including:

  • Storage tank emissions from daily/seasonal temperature changes
  • Tank filling product transfer operations
  • Continuous process vents
  • Railcar, tank truck, and barge loading
  • Tank cleaning

Industrial Air Treatment for Vapor Emissions

PCC Activated Carbon Adsorption

The rising emphasis on cleaner air poses new challenges for industry to treat contaminants at air emission sources. Activated carbon adsorbers are utilized to capture VOCs and other toxic air pollutants from petrochemical plants, landfill sites, manufacturing operations, and chemical processing facilities.

Industrial
Odor Removal

PCC Activated Carbon Adsorption

There are many industrial processes where odor removal is the primary reason for air treatment. These odors are generally in the vapor phase and tend to contain sulfur compounds such as HS and other odorous compounds.

Activated carbon is an effective adsorbent media for odor removal from vapor phase streams. PCC-CAP® Adsorbers are excellent at capturing the odor-causing compounds in industrial applications.

Standard and Custom Adsorbers

PCC offers a wide range of activated carbon adsorption equipment and systems for vapor phase applications in vapor emission control, industrial odor control, Thermal Oxidizer back-up, and other markets. These vapor phase activated carbon adsorbers are designed for the use with: VOC Abatement, storage tank emissions, tank filling, railcar or barge loading, tank vents, process vents and continuous industrial waste streams.

The range of flows treated by PCC's vapor phase activated carbon adsorber line is from 20 to >20,000 cfm. Larger flows have been treated by using adsorbers in parallel. All PCC-CAP® Adsorbers are modular and designed to have low-pressure drop, excellent flow distribution, and resistance to corrosive compounds. Customized ASME Code designs are available.

Max Flow (cfm)
Max Pressure (pslg)
Max Temp (deg. F)
Standard Fill (lbs)
Integrated System  100-20,000   1-15 psi  180  Dependent upon type
Box Adsorber  X 8,000-20,000  1  180  650-7,400
Steel Vessel  75-5,000  15 X 180  650-7,400
XP Drum  100-500  ATM-3 130   170-140
Steel Drum  100-250  6 200   200-400

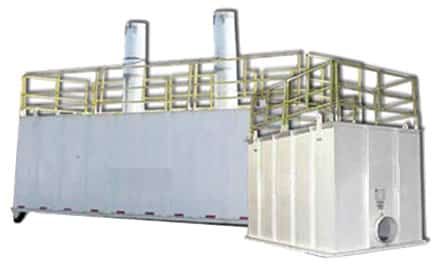

Box Adsorber
Box Adsorber

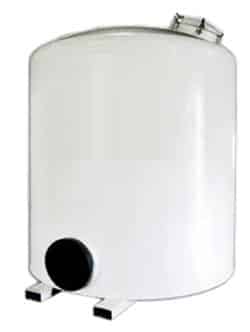

Steel Vessel
Steel Vessel

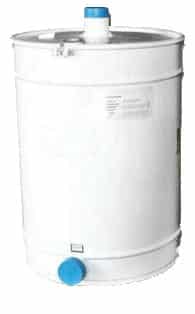

Steel Drum
Steel Drum
XP Drum
XP Drum
fire-icon

Activated Carbon Adsorption FAQ

What is Activated Carbon?

Activated carbon is a porous material that removes organic compounds from liquids and gases in a process known as “Adsorption.” The extremely high surface area of activated carbon gives it the attractive, adsorptive properties to remove volatile organic compounds (or VOCs) from vapor or liquid streams. Activated carbon is produced by thermally decomposing organic or carbonaceous source materials – such as wood, coal, or coconut shells – in a controlled environment. The finished product has an extremely high surface area and can be processed further into specific shapes or mesh sizes (e.g. pellets or granules at a 12 mesh size). Activated carbon can also be impregnated with additional adsorbates to enhance the adsorption of specific VOCs and organic compounds.

How does Activated Carbon Work?

Activated carbon utilizes its extremely high surface area to remove contaminants in the process of physical adsorption. At the submicroscopic level, the surface of the carbon pores exerts attractive forces. For certain VOCs, the attractive force of the carbon surface is stronger than the attractive forces keeping them dissolved in the liquid solution or vapor stream. For these compounds, the VOC molecule adheres or sticks or “adsorbs” to the surface of the carbon, thereby removing them from the treated effluent stream. Compounds that are ideal for activated carbon adsorption tend to be organic and non-polar and have high molecular weights and boiling points.

What are Adsorbers?

Adsorbers are vessels or modules that contain activated carbon for the purpose of removing contaminants from a process stream. Activated carbon adsorbers are effective in industrial applications, such as vapor emission control and odor removal. Within the adsorber, the waste stream is injected into the vessel with an excellent flow distribution and a minimized pressure drop. Within the carbon bed, VOCs, such as benzene or trichloroethylene, are captured and absorbed into the pores of the activated carbon. Finally, the treated effluent stream exits the adsorber, achieving environmental compliance and reduced emissions. PCC’s Carbon Adsorption Process (PCC-CAP™) Adsorbers are of a modular design and can handle a range of vapor flows from 20 to >20,000 cfm. Larger flows have been treated by using adsorbers in parallel. All of these adsorbers have been designed to have a low-pressure drop, excellent flow distribution, and resistance to corrosive compounds. Customized ASME Code designs are available.

What are Suitable Applications for Carbon Adsorption?

Activated Carbon Adsorption can be used for a wide variety of vapor phase applications in emission control, industrial odor control, Thermal Oxidizer back-up, and other various markets. They are ideal for Pharmaceutical Facilities, Specialty Chemical Manufacturing, Crude and Natural Gas Refineries, Paint & Coating Manufacturers, and Plastic Resin & Synthetic Fiber manufacturing. PCC offers a wide range of activated carbon adsorption equipment and systems for use with: air stripper off-gas, storage tank emissions, railcar or barge loading tank vents, reactor vents and continuous industrial waste streams.

What additional services are offered?

Carbon Exchange Service
Activated carbon achieves high removal efficiencies for a large number of VOCs until it has reached its usable lifespan and breakthrough occurs. During breakthrough, the activated carbon can no longer adsorb organics, and the spent carbon must be removed and replenished with fresh carbon.

Once the carbon’s adsorption capacity has been reached, the spent carbon must be removed from the adsorber and re-filled with fresh carbon. The spent carbon can either be disposed of or reactivated. Reactivation allows for recycling and reuse of the spent carbon. PCC can assist in the disposal, reactivation, and recycling of the spent carbon.

Rental Equipment
Adsorbers may be rented for during the maintenance of thermal oxidizers. This allows manufacturing plants to keep running when the shutdown would have been otherwise required. If rental units are needed, please contact PCC. Please include the compounds and concentrations of the waste stream and date at which the rental is required.

PCC Integration

With more than 1,000 systems successfully operating throughout the world, we’ve custom designed systems for many Fortune 500 companies ranging from $150,000 to more than $15 million.

PCC has experience working with many systems.  With installations successfully operating in over 35 countries, PCC has the knowledge and experience to integrate a new system with your current operating platform.

International Quality Certification, LLC

PCC's Quality Management System is certified in conformance with the ISO 9001:2008 standard.

PCC's adherence to consistent and predictable systems is a cornerstone of our long-term track record of success.
