Venturi Scrubbers use high-energy impaction of liquid droplets to remove particulate from contaminated air streams. Water or other liquors are directed towards a constriction, or throat, where the atomized liquid scrubs the particulate from the air and transfers it to the scrubber liquid droplets. This type of technology is a part of the group of air pollution controls referred to as wet scrubbers. The amount of particulate removed from the air stream, or control efficiency, is based on several design elements, including pressure drop and contact time.
Venturi Scrubbers
Basic
Diverse applications
Flooded Wall
High dust loading or hygroscopic nature of the dust
Boiler
Double-bladed throat damper for constant efficiency in fluctuating gas flows
Quencher
High-temperature application
Impactor
Multiple scrubbing techniques for dissolving tanks
Lime Slaker
Mounted on top of lime shakers and uses the green slaker feed for scrubbing
Basic Oxygen Furnace
Very high gas volumes (up to 1,000,000 acfm) and dust loadings
Type C-V
Combines a Venturi with an enhanced cyclonic separator for large particulates and acid gas removal
Combination Particulate - Acid Gas Scrubbers
Compact and low cost
AirPol Advantages
AirPol’s extensive history of designing Venturi Scrubbers to handle even the most difficult challenges equals unparalleled expertise in applications requiring wet scrubbers. The AirPol Venturi Scrubber:
Effectively collects sub-micron particles, as well as coarser particles, at low pressure drop
Designed to meet any desired particulate removal efficiency
Works without spray nozzles or jets that can cause clogging

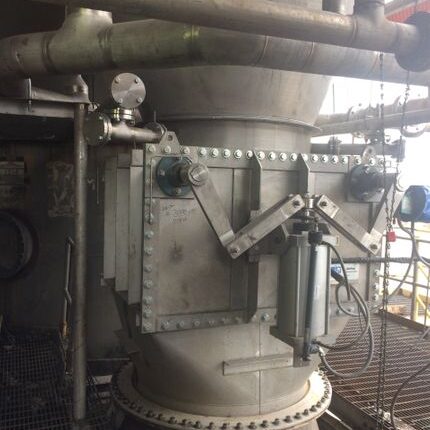

Adjustable throat dampers maintain constant removal efficiency at fluctuating gas volumes
Resists corrosion or abrasion via alloy materials and lining
Operates reliably with a proven record of minimal maintenance year after year
Industries Served
- Pulp and Paper
- Chemical
- Iron and Steel
- Cogeneration
- Incineration
- Metallurgical
- Pharmaceutical
- Wood Products
- Minerals/Mining
